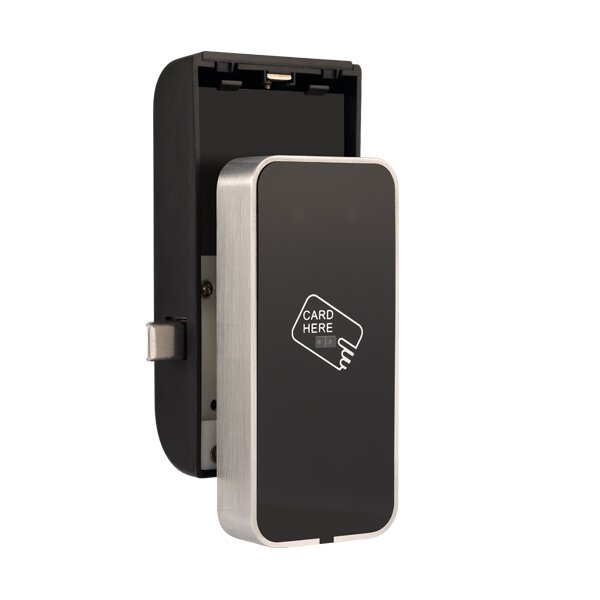

BE-TECH ELECTRONIC CABINET LOCK – CYBER II RFID C2800M8-12GX

echnical Specification:

• Power: 4 x 1.5 AA Batteries
• Operations: 30,000 Openings
• Low battery: When lock signals “Low Battery” there will be 60 additional openings.
• RFID frequency: 13.56MHz
• Reading distance: 10 to 25mm (0.39″ to 0.98″)
• Material: Stainless Steel
• Door thickness: 12mm (0.47″) up to 22mm (0.87″)
• Temperature range: -10~55˚C (14~131˚F)
• Dimension (H x W x D): Front body: 118 x 55 x 27.7mm
• Finish: Silver, Matte Black
• Accessories available: RFID Card, Override battery case
• Card keys: Cyber II RFID has 4 key levels:
  Owner key, Master key, Service key
  and User key
• Net Weight: 370g
• Gross Weight: 415g (1 lock / box)
• Packing: 40 boxes / ctn. (40 locks / ctn)
• Carton Size: 425mm x 265mm x 175mm

Functions:

• Shared use
  The user can select any free locker. Once occupied, the locker can only be opened by that specific card. Even though the card is not locker specific, it can only be used in one locker at a time.
• Assigned use.
  The user can open the same number of lockers as guest room number, it can only be used in the specific locker while guest keycard is still valid throughout the guest’s stay.
